Contrapanel

Impact resistant acoustical panel for ceilings and walls

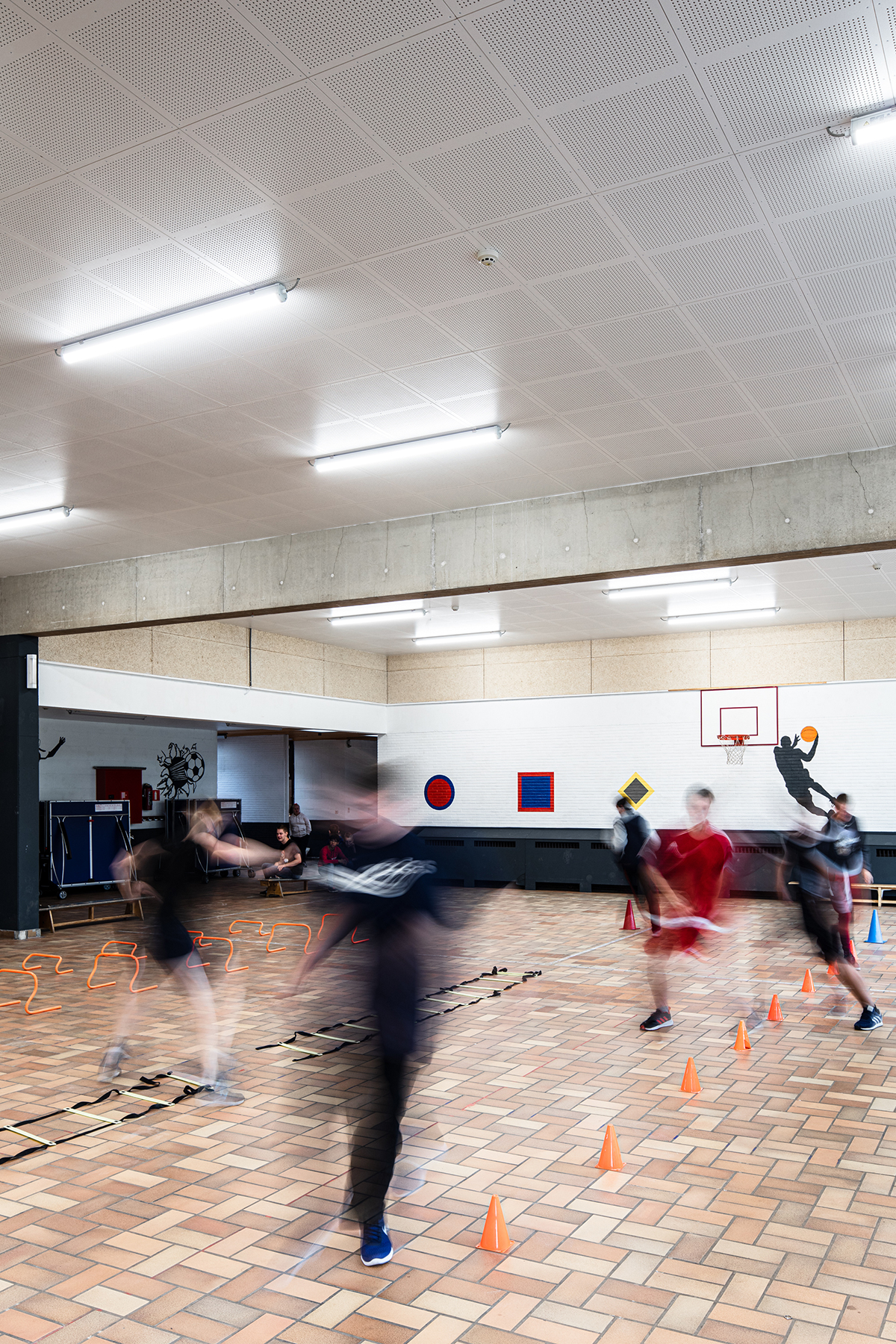

Contrapanel ensures acoustic comfort and a bright atomosphere in sports halls and gymnasiums.
Contrapanel as ceiling lining is installed on CD profiles.

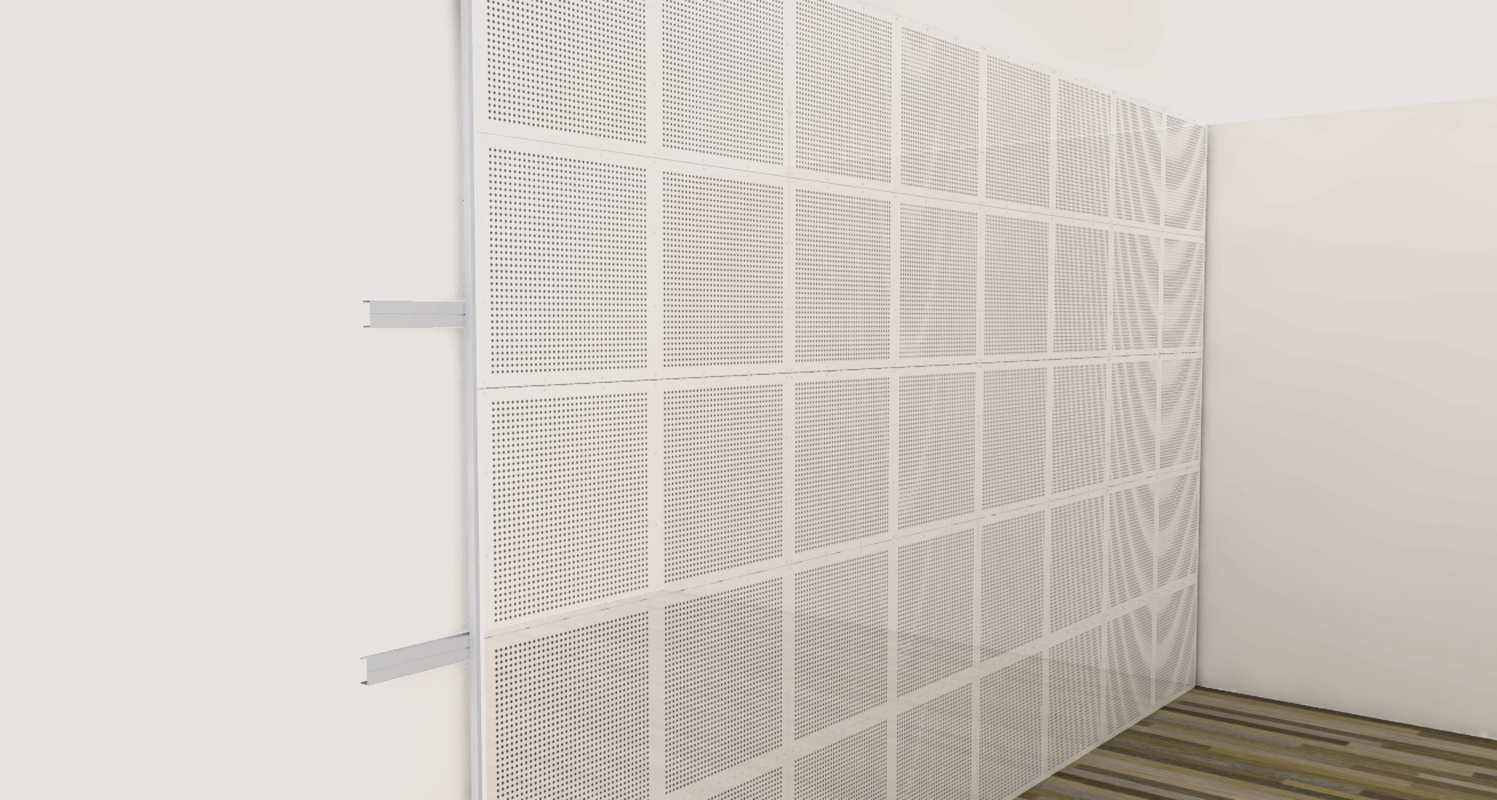

Contrapanel as wall lining is installed on Z-profiles.
Contrapanel is fixed to the furring through the front of the panel using white-painted screws.

Product details

Contrapanel is an acoustic panel with exceptional strength. The surface of the panel is laminated with pre-impregnated white paper which gives the robustness.

Contrapanel meets the toughest requirements for impact resistance and is ideal for use in high-activity rooms such as sports halls and gymnasiums.

Impact resistance and excellent acoustics
Time-saving installation in a few steps
Printable and washable surface
Made from gypsum, a recyclable material
Product is recyclable and can be reused in the production of new gypsum boards and gypsum tiles

Top downloads

See all downloads

Edge Designs

Contrapanel as ceiling Edge B with visible joints

Contrapanel as wall lining Edge B with visible joints

Perforation Designs

Globe Circles Ø6mm, c/c 15mm

Reference projects with Contrapanel

The exceptional impact resistance of Contrapanel makes this acoustical ceiling and wall lining ideal for gymansiums, sports facilities and any other type of room with high activity level and risk of impacts to the ceilings and walls.

Contrapanel has a foil-covered surface; making it easy to wash and even decorate with printed designs of your choice.
Gypsum is an exceptionally pliable material which makes it possible to curve Contrapanel on site. Learn more about the project
Contrapanel is used as ceiling and wall lining in a sports centre in France. Learn more about the project

Recyclable comfort

Contrapanel acoustical panels are designed for recycling. The panels are made from gypsum - a recyclable material. After ended service life, the panels are taken apart and the gypsum core is used in production of new gypsum boards.

Tested for impact resistance

Contrapanel is rated Class 1 for impact resistance, in accordance with EN 13964. The impact resistance is tested by throwing a handball to the Contrapanel surface at different angles and speeds. The robustness of the surface of a Contrapanel means that the ball impact has no influence on the integrity of the material and leaves no marks.

Time-saving solution

The design of a Contrapanel means that both acoustical and impact-resistant functionality of a wall or ceiling surface is ensured by the panel itself. Therefore, with Contrapanel you are able to meet the requirements for acoustics and strength in one simple installation process. Contrpanel is screw-fixed to a CD2 furring system using white-painted screws. No filling or painting required.

Product performance

Recyclability

Made of gypsum, a recycleable material

Safe material (certified with Danish Indoor Climate Labelling and high fire classification)
Acoustics

Up to 0.70 NRC

Up to 0.65 alpha value

Value depending on construction
Air quality

Certified according to
Danish Indoor Climate labelling

Air purification with
Cleaneo Technology
Impact resistance

Class 1 in accordance with EN13964

Designed to meet impact resistance requirements in sport halls and gymnasiums.
