Large acoustic panels with perforation to edge. For ceiling and walls. Monolithic look.

  • Solopanel offers a smooth, completely monolithic surface.

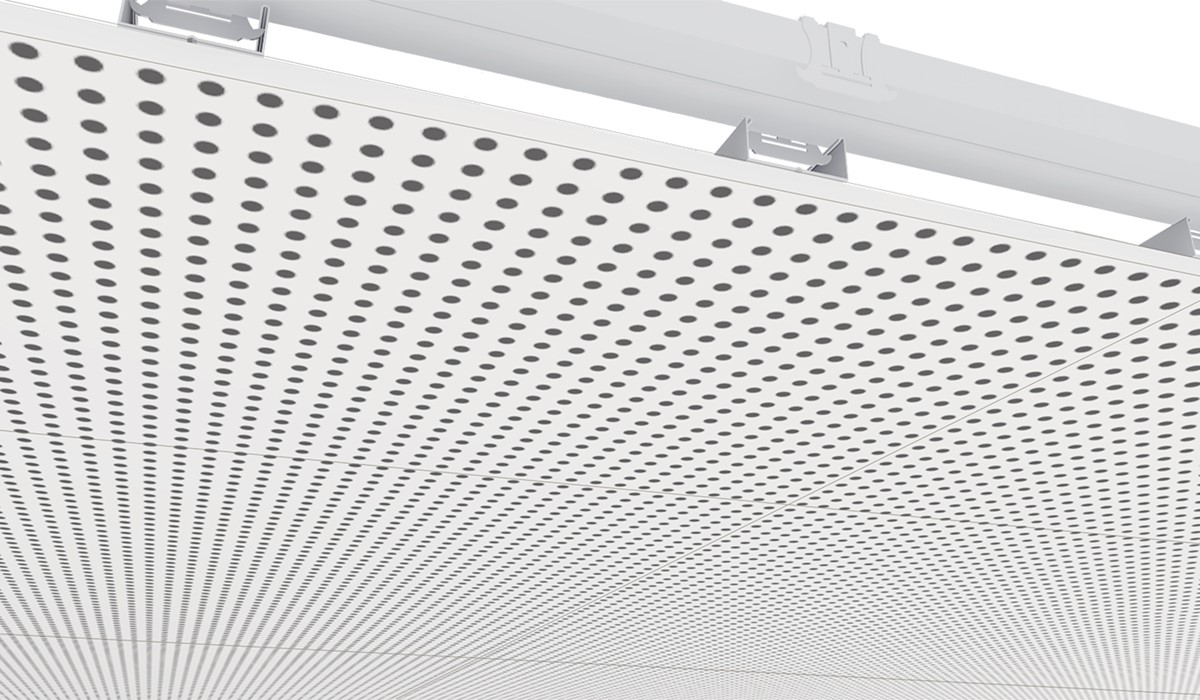

  • Solopanel as ceiling lining

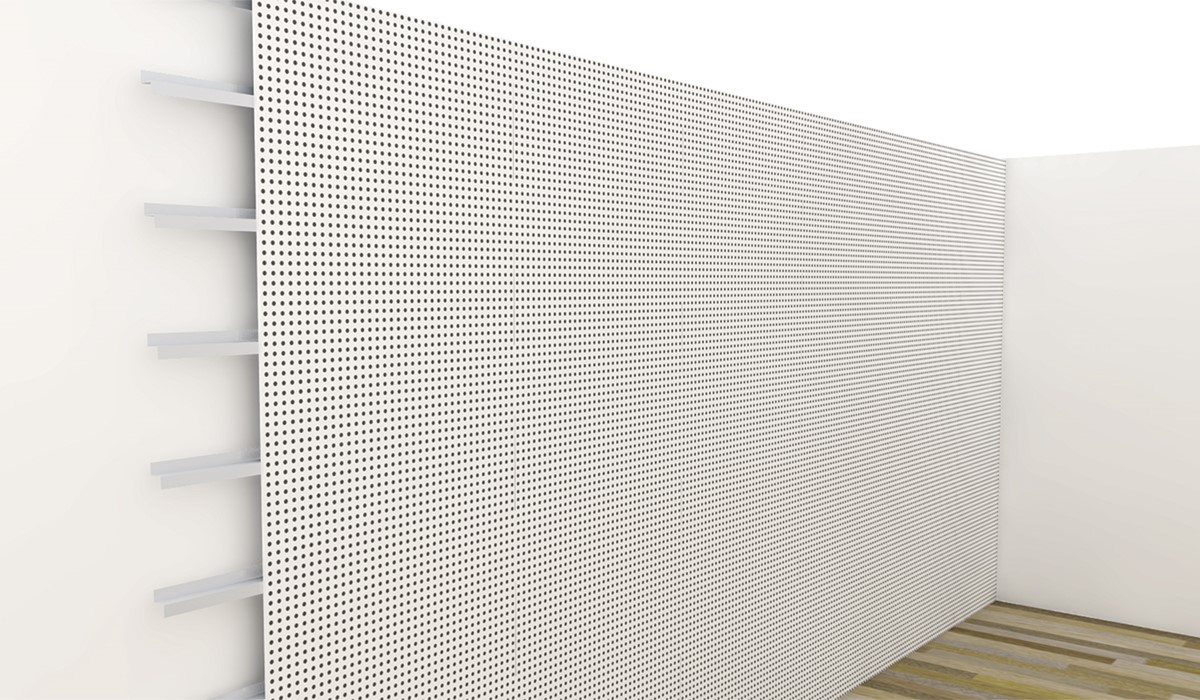

  • Solopanel as wall lining.

Product details

Solopanel is an unpainted acoustical panel for screw-fixing on ceilings and walls. Solopanel is in a wide range of perforation designs and panel sizes, giving you the option to design the acoustic surface that matches your requirements. Perforation pattern on a Solopanel extends to the edge, ensuring a comletely monolithic surface.

  • Monolithic surface
  • Wide range of designs
  • Repaintable without loss of acoustics
  • Made from gypsum, a recyclable material
  • Danish Indoor Climate Labelling
  • Product is recyclable and can be reused in the production of new gypsum boards and gypsum tiles

Top downloads

See all downloads

Edge Designs

Solopanel as ceiling Solopanel as ceiling Edge MF with minimal bevelling, discreet joints
Solopanel as ceiling Solopanel as ceiling Edge UFF, no visible joints
Solopanel as wall lining Solopanel as wall lining Edge UFF, no visible joints
Solopanel as wall lining Solopanel as wall lining Edge MF with minimal bevelling, discreet joints

Perforation Designs

G6/18 G6/18 Circles Ø6mm, c/c 18mm
G8/18 G8/18 Circles Ø8mm, c/c 18mm
G10/23 G10/23 Circles Ø10mm, c/c 23mm
G12/25 G12/25 Circles Ø12mm, c/c 25mm
G15/30 G15/30 Circles Ø15mm, c/c 30mm
Q8/18 Q8/18 Square 8x8mm, c/c 18mm
G8/12/50 G8/12/50 Circles Ø8 & Ø12mm, c/c 50mm
G12/20/66 G12/20/66 Circles Ø12 & Ø20mm, c/c 66mm

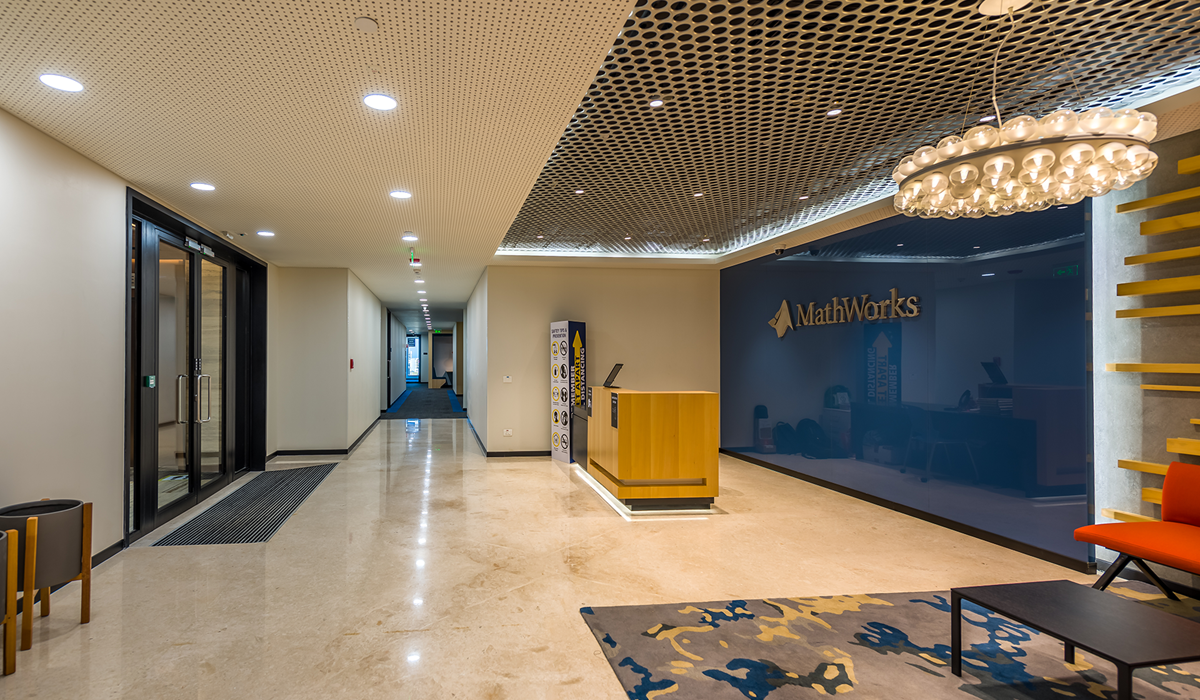

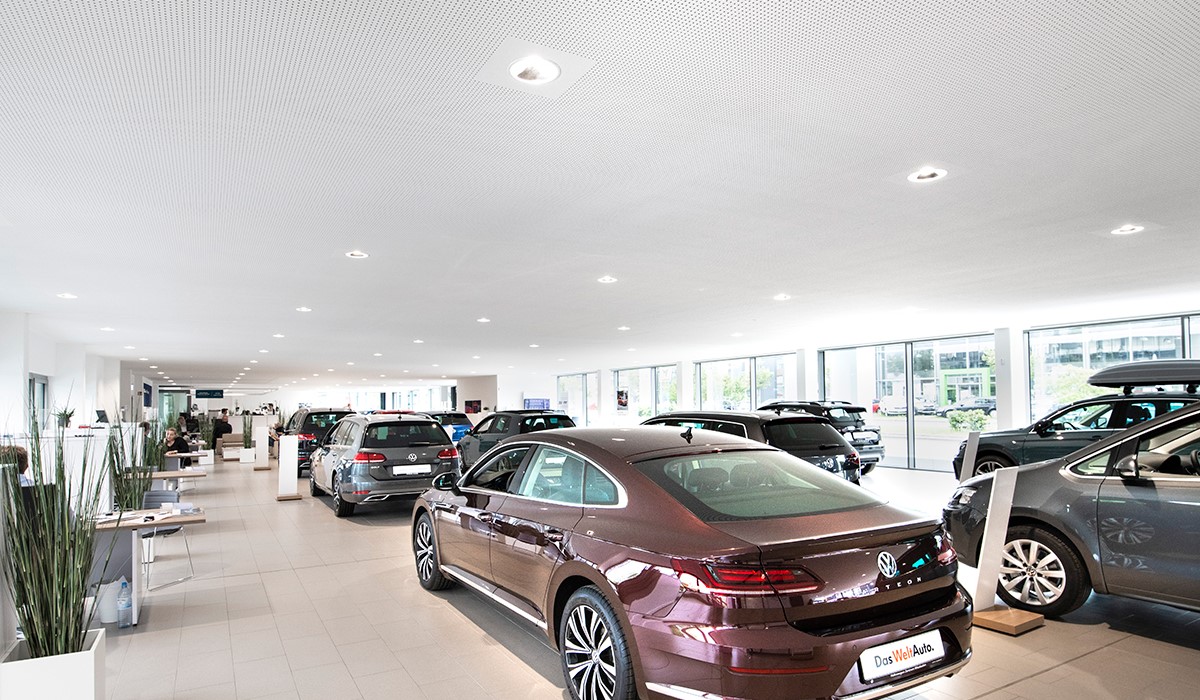

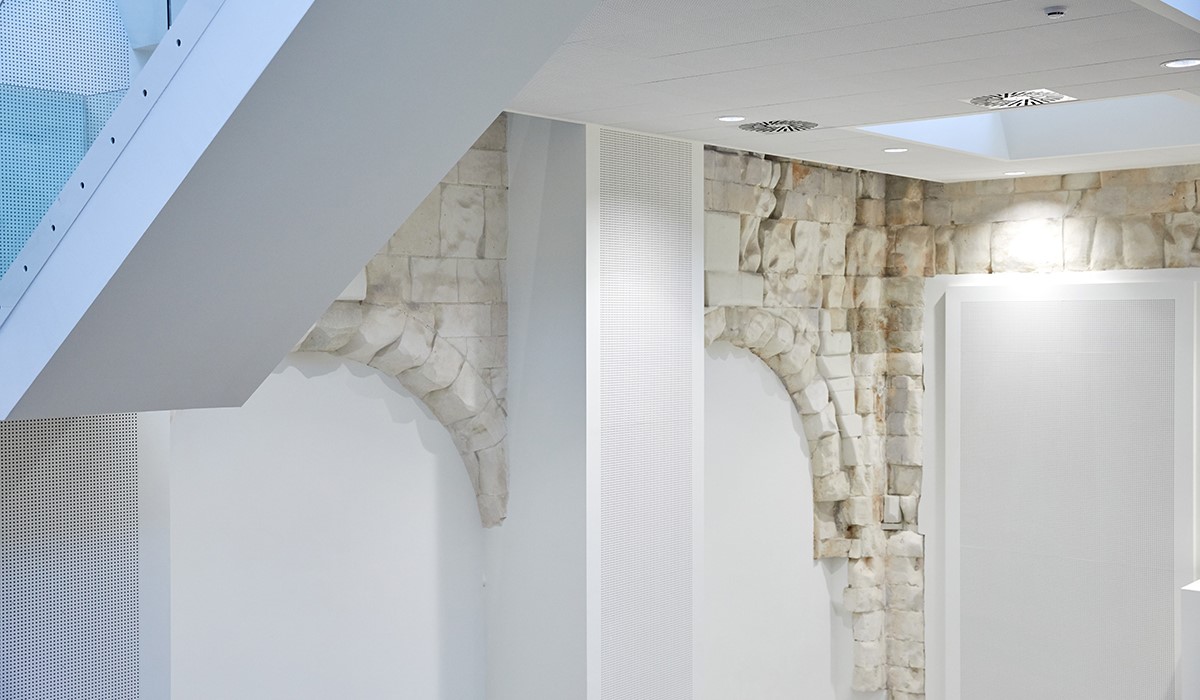

Reference projects with Solopanel

The seamless, minimalistic look makes Solopanel perfect for large ceiling or wall surface in any type of building, from private homes and retailshops to universities and offices.

Recyclable material

Solopanel is made from high quality gypsum - a building material that is robust and recyclable. The production of Solopanel is kept simple, ensuring that the panels can be recycled after end service life and used for the production of new gypsum boards.

Monolithic design

What makes Solopanel unique is the perforation design to the very edge of the panel. Once installed, this feature makes Solopanel appear as a monolithic surface. With the UFF edge design - requiring joint filling - you achieve a completely seamless look to the acoustical ceiling or wall surface. MF edge requires no joint filling and leaves a discreet, almost invisible joint between the acoustic panels.

Complementary to demountable ceilings

The discreet look and the wealth of design options enable you to use Solopanel in combination with a matching demountable acoustic ceiling like for example Contur+. You ensure a matching design as well as an easy access to installations.



Product performance

  • Recyclability Recyclability

    Made of gypsum, a recycleable material

    Right now, each Solopanel tile consists of up to 30% recycled gypsum

  • Acoustics Acoustics

    Up to 0.70 NRC

    Up to 0.75 alpha value

    Value depending on design and construction

  • Air quality Air quality

    Certified according to
    Danish Indoor Climate labelling

    Air purification with
    Cleaneo Technology
