Belgravia Unity

Belgravia Unity

Easy service maintenance because of demountable acoustical lay-in tile in recessed T-grid

Product details

Belgravia Unity is an acoustic gypsum ceiling installed in recessed T-grid. The ceiling offers a simple, time-saving installation with exceptional design and high functional quality. In addition to acoustic comfort, Belgravia Unity also ensures fresh air as the ceiling tiles are tested and approved as ventilation ceiling with concealed air inlet.

  • Verified Environmental Product Declaration (EPD)
  • Danish Indoor Climate Labelling
  • Made from gypsum, a recyclable material
  • Tested as ventilation ceiling
  • Rich design possibilities with different perforation designs
  • High acoustical performance
  • Fireresistant
  • Repaintable without loss of acoustics
  • Easy access to installations
  • Listed to be used in Nordic Swan Ecolabelled buildings
  • Product is recyclable and can be reused in the production of new gypsum boards and gypsum tiles

Top downloads

See all downloads

Edge Designs

Belgravia+ (E+) Belgravia+ (E+) Recessed S15 suspension grid
Belgravia+ (E+) Belgravia+ (E+) Recessed S24 suspension grid
Belgravia+ (E+) Belgravia+ (E+) Fineline suspension grid

Perforation Designs

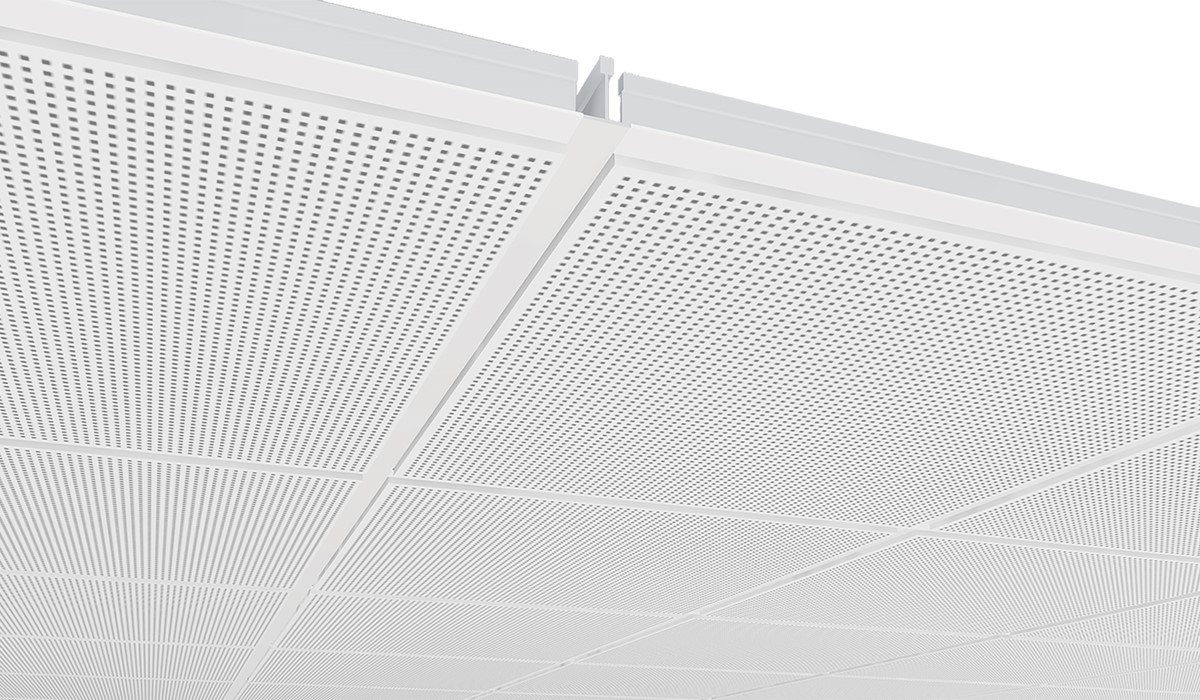

Unity 3 Unity 3 Square 3.5x3.5mm, c/c 8.3mm
Unity 4 Unity 4 Circles Ø4mm, c/c 10mm
Unity 6 Unity 6 Round Ø6mm, c/c 15mm
Unity 9 Unity 9 Square 9x9mm, c/c 20mm
Unity 8/15/20 Unity 8/15/20 Various circles Ø8, Ø15 & Ø20mm

Reference projects with Belgravia Unity

Durable material and simple, contemporary design characterise Belgravia Unity. This makes the acoustical ceiling suitable for schools, offices, retail shops, hospitals, etc.

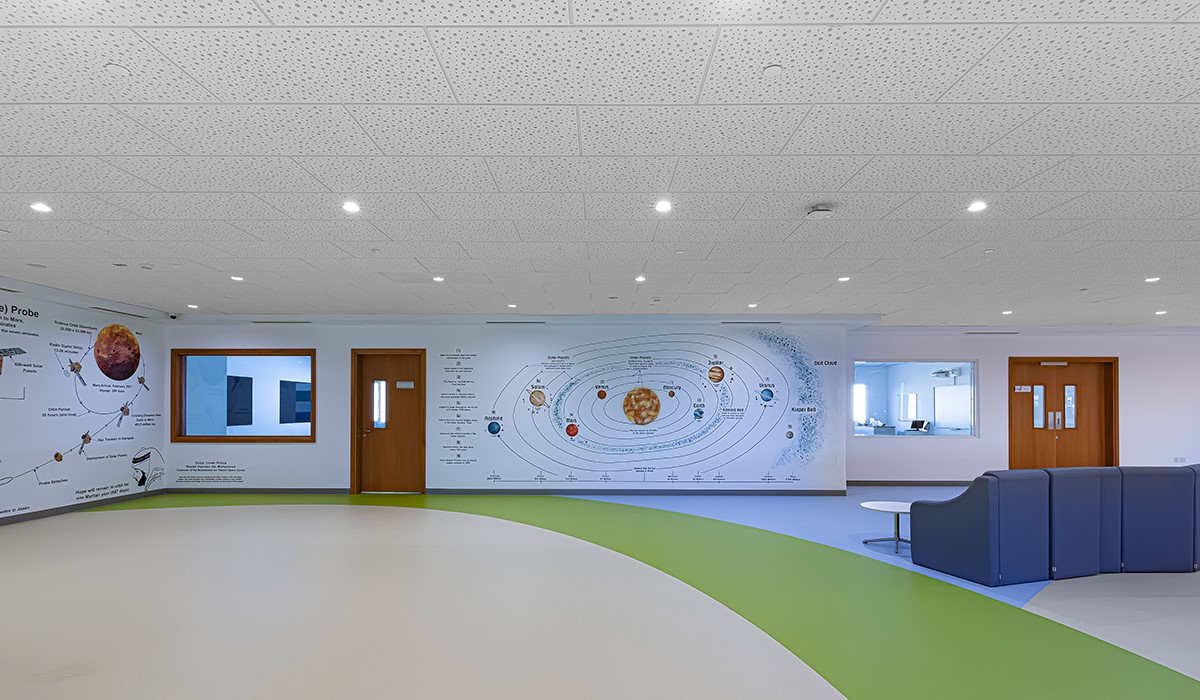

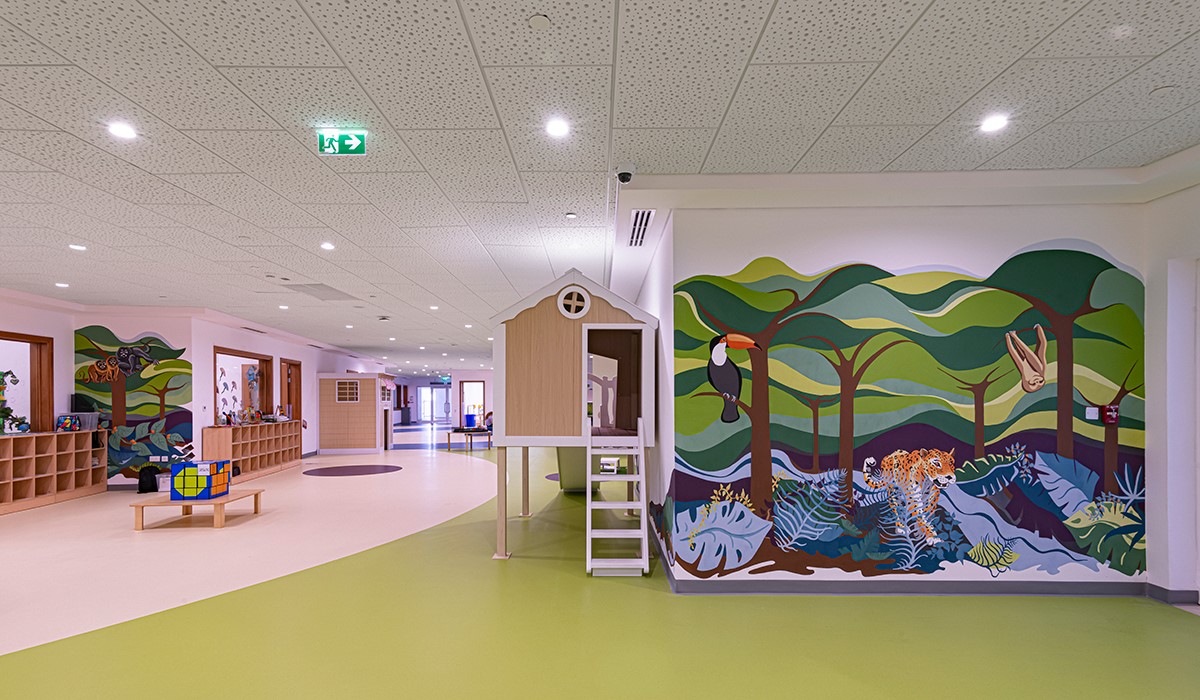

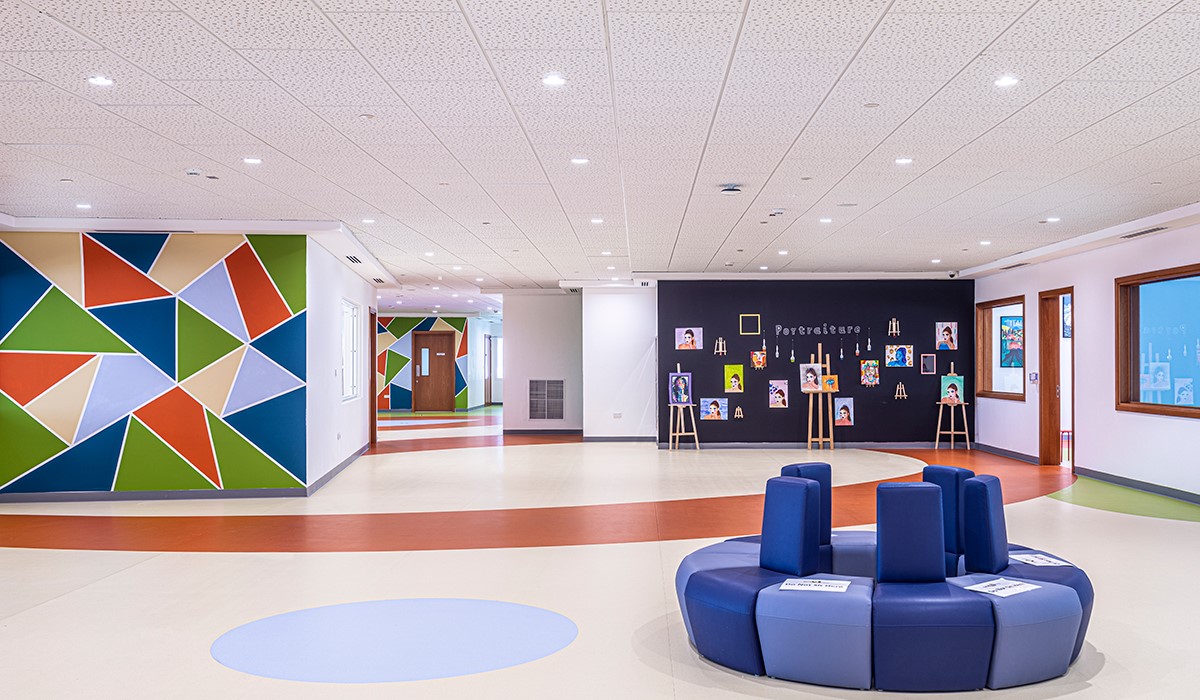

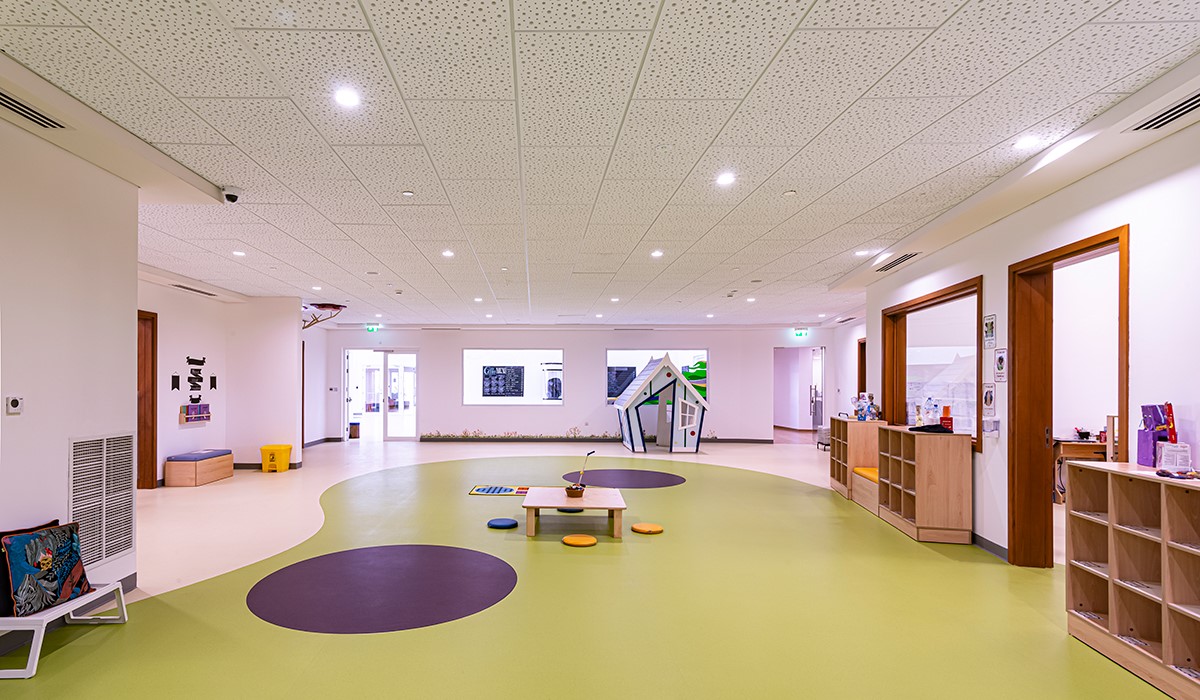

  • Belgravia Unity with Unity 8/15/20 perforation installed at Safa British School, Dubai. Learn more about this project.

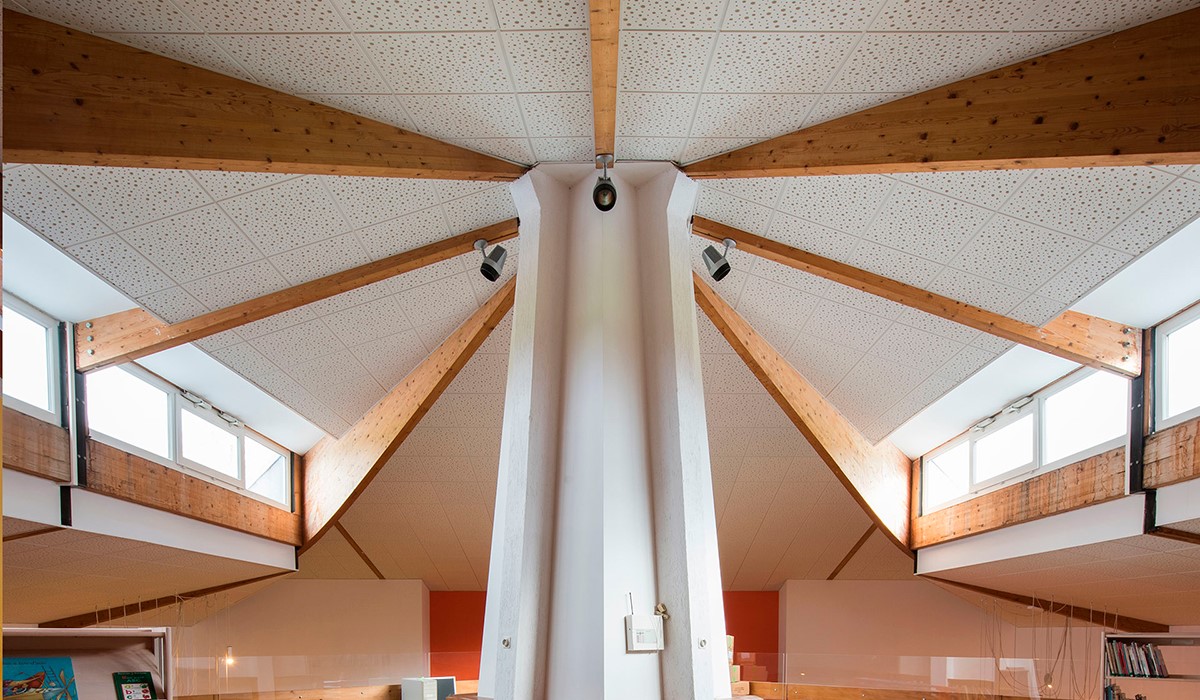

  • Belgravia Unity with Unity 8/15/20 perforation at a primary school in France.
  • Belgravia Unity with Unity 8/15/20 perforation installed at Safa British School, Dubai. Learn more about this project.

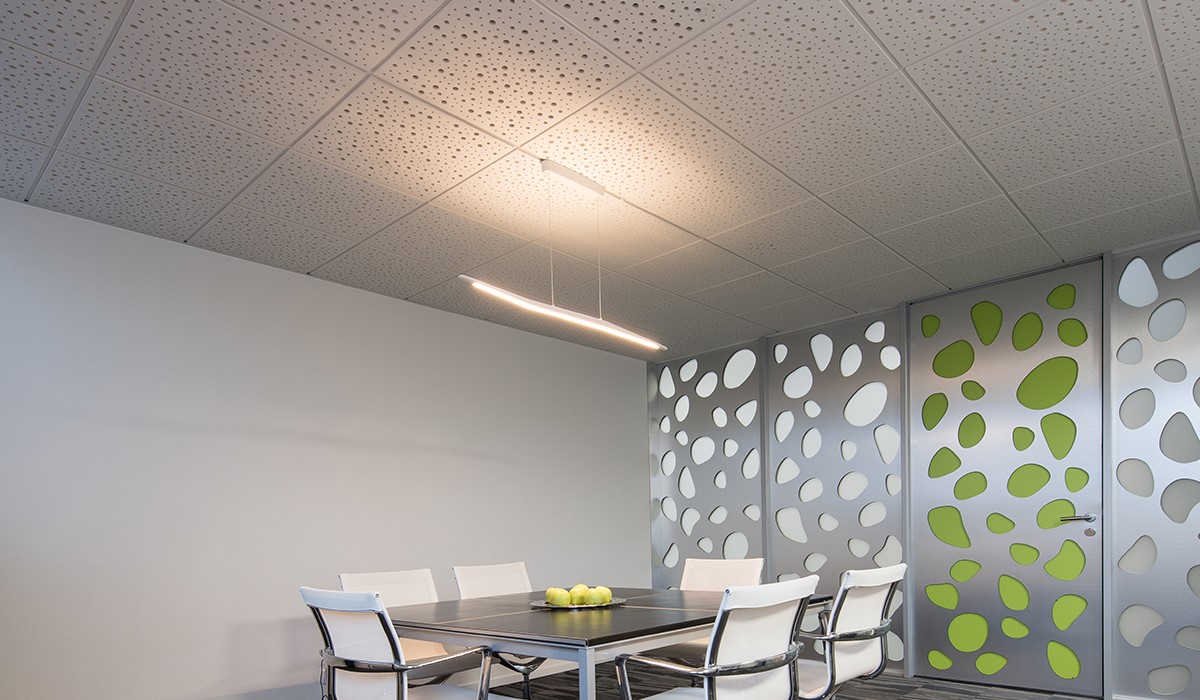

  • Belgravia Unity with Unity 8/15/20 perforation design at a car dealership offices.
  • Belgravia Unity with Unity 8/15/20 perforation installed at Safa British School, Dubai. Learn more about this project.

More comfort with perforated gypsum tiles

Made of robust perforated gypsum, Belgravia Unity ceiling tiles maintain their high quality during the entire service life. One Belgravia Unity acoustic tile consists of up to 30% recycled gypsum, and the acoustic tiles can be repainted without impact on the sound absorption of the tiles. Belgravia Unity acoustical tiles are recyclable and can be used in the production of new gypsum tiles and boards. Gypsum as a material is a safe material (a high fire class), which promotes an healthy indoor climate (certified with the Danish Indoor Climate Label).

Tested as ventilation ceiling

Belgravia Unity acoustical tiles are tested and approved as a ventilation ceiling. This means that the entire ceiling surface functions as one large ventilation vent. Perforation holes and the distance between the ceiling tiles let the fresh air flow smoothly into the room. Air inlets in the ceiling are not required which means that there are no crossing ducts at the back of the ceiling. This offers a potential saving of up to 20-50 cm ceiling height .

Time-saving installation

Belgravia Unity acoustic ceiling is exceptionally robust. The ceiling tiles are installed as lay-in tiles into the suspension grid; thus offering a high stability to the ceiling during installation. This means time-saving on the building site. The tiles are equally easy to demount for maintenance and servicing of installations.

Perforation to edge

The acoustical tiles are designed with a series of Unity perforation designs. The Unity perforations go all the way to the edge of the tile. This offers top acoustic performance and a calm, contemporary ceiling look.

Product performance

Contemporary design and exceptional functionally go hand in hand with Belgravia Unity.

  • Recyclability Recyclability

    Made of gypsum, a recyclable material

    Safe and clean material (high fire class and certified with Danish Indoor Climate Label)

  • Acoustics Acoustics

    Up to 0.90 NRC

    Up to 0.95 alpha value

    Value depending on design and construction

    Repaintable without loss of acoustics

  • Air quality Air quality

    Certified according to
    Danish Indoor Climate labelling

    Air purification with
    Cleaneo Technology

    Listed to be used in
    Nordic Swan Ecolabelled buildings

    Verified Environmental
    Product Declaration (EPD)

  • Ventilation Ventilation

    Tested and approved as ventilation ceiling with concealed air inlet.

Plaza and Belgravia - Cutting and handling

How to cut and handle our demountable acoustic ceilings: Plaza, Plaza Unity, Belgravia and Belgravia Unity
