Designpanel

Various aesthetic design opportunities with no visible joints for ceilings and walls.

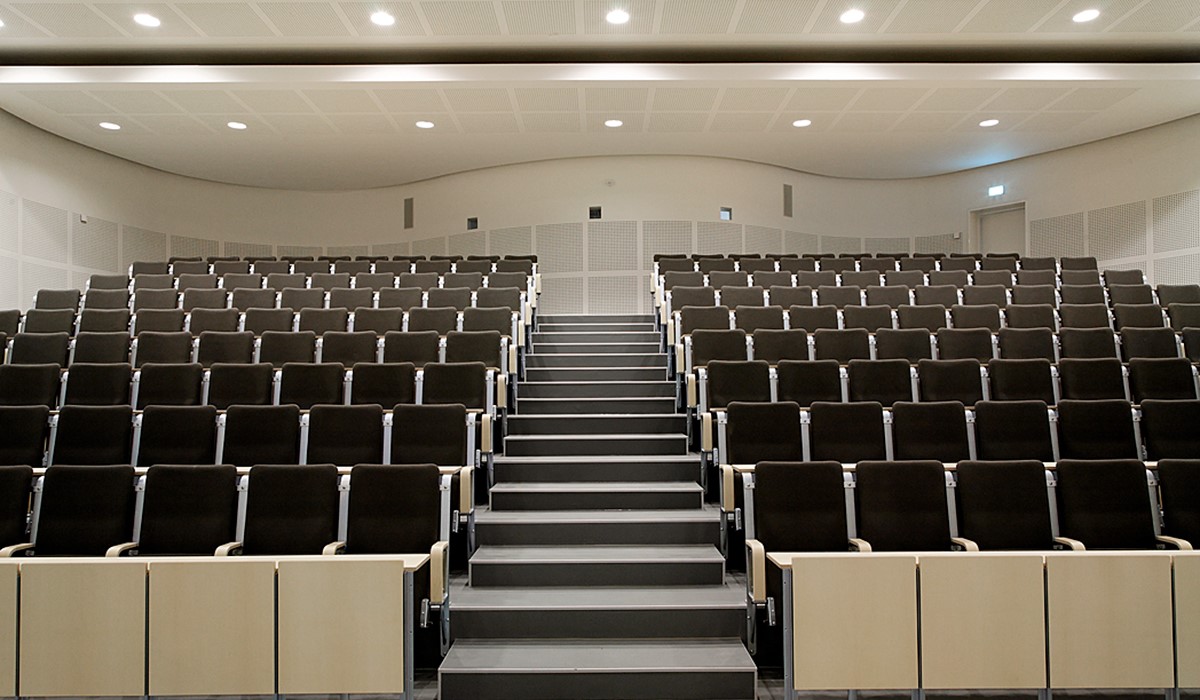

Designpanel as ceiling and wall lining in a military education building in Denmark.

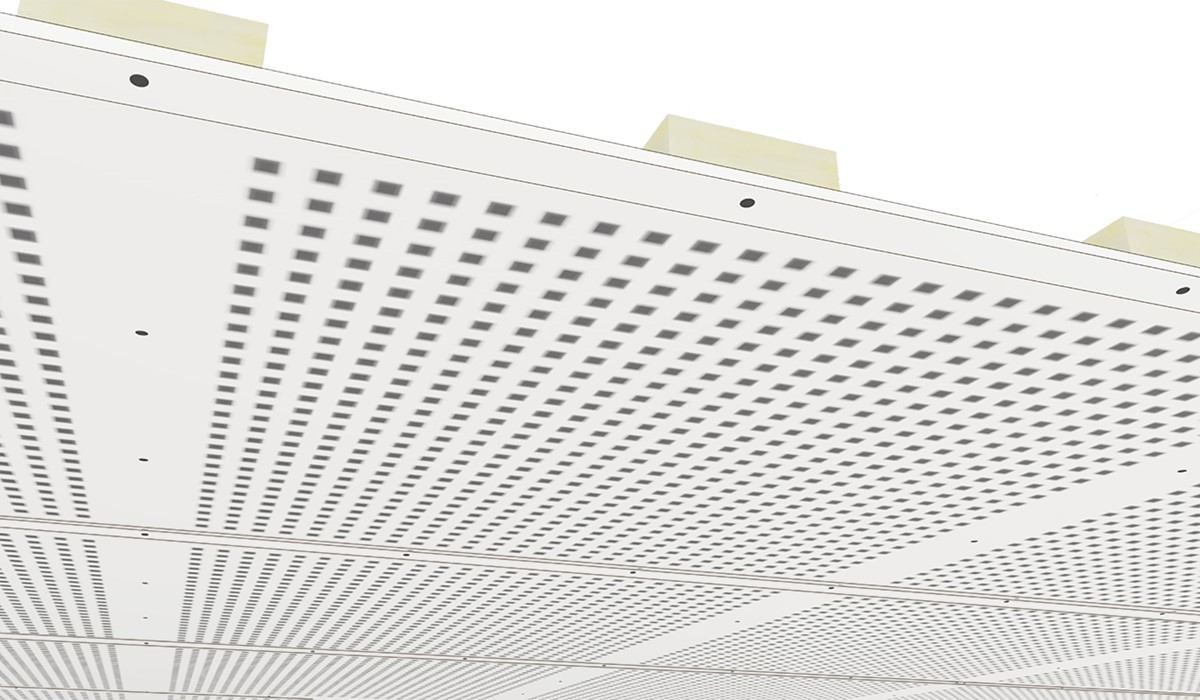

Designpanel as ceiling lining on wood furring

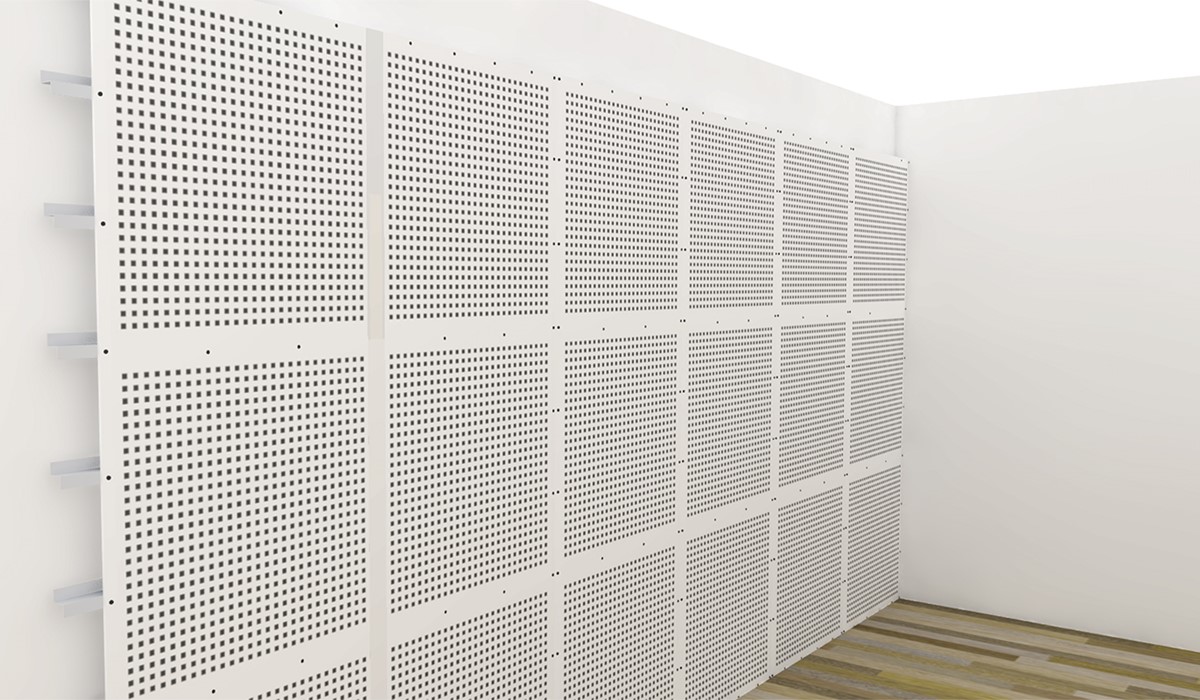

Designpanel as wall lining on steel profiles.

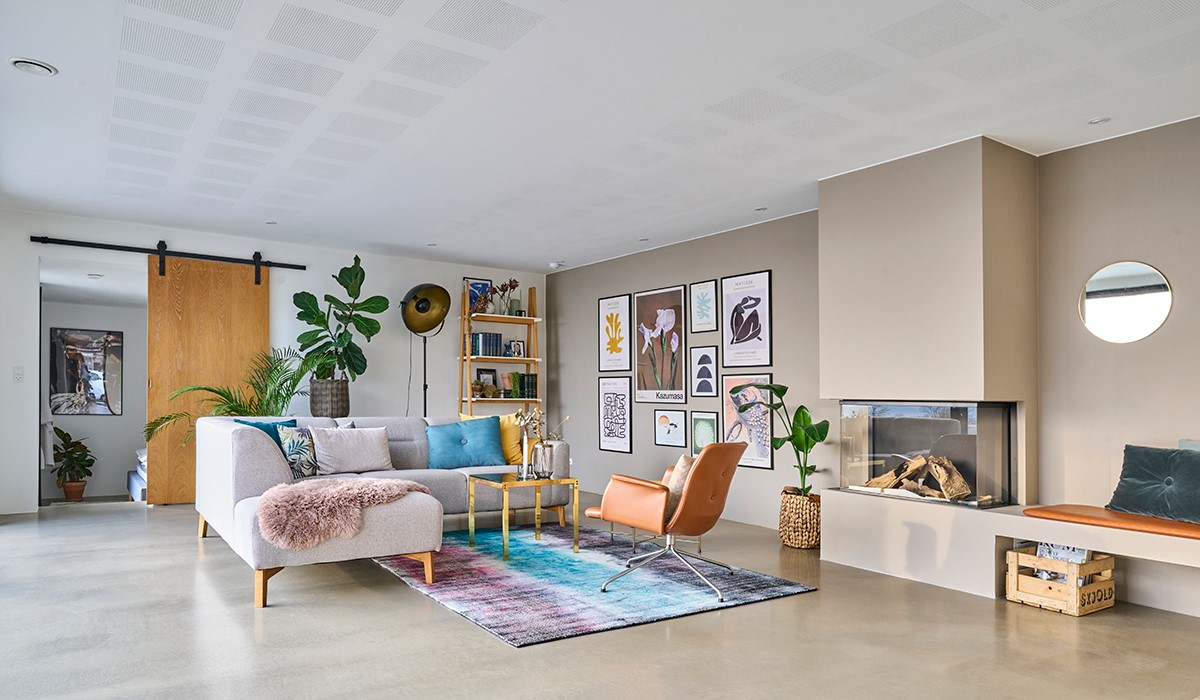

Designpanel acoustic ceiling panels used in private home

Product details

Designpanel are unpainted acoustical gypsum panels for screw-fixing on ceilings and walls. The panels are installed on wood or steel furring. Designpanel comes with 4 tapered edges which makes the joint-filling easy.

With Designpanel, you achieve a smooth, seamless surface with reference to nordic design principles, and excellent acoustics.

Verified Environmental Product Declaration (EPD)
Danish Indoor Climate Labelling
Made from gypsum, a recyclable material
Fireresistant
Repaintable without loss of acoustics
Low installation space needed
Well-known installation/jointing process
Excellent light reflectance
Higher stability with screw-fixed installation
Listed to be used in Nordic Swan Ecolabelled buildings
Product is recyclable and can be reused in the production of new gypsum boards and gypsum tiles

Top downloads

See all downloads

Edge Designs

Designpanel as ceiling lining on wood Edge B1 with 4 tapered edges, no visible joints

Designpanel as ceiling lining on steel Edge B1 with 4 tapered edges, no visible joints

Designpanel as wall lining Edge B1 with 4 tapered edges, no visible joints

Perforation Designs

Globe Circles Ø6mm, c/c 15mm

Micro Square 3x3mm, c/c 8.3mm

Quadril Square 12x12mm, c/c 30mm

Tangent Obround 4x14 mm, c/c 10/20mm

Reference project with Designpanel

Designpanel offers a true application flexibility and a discreet design. It is therefore widely used as acoustic ceiling in private homes, schools, and kindergartens, as acoustic vaults or in combinaton with standard dry-lining.

Thanks to its discreet, smooth surface, Designpanel is ideal for acoustic treatment in private homes.

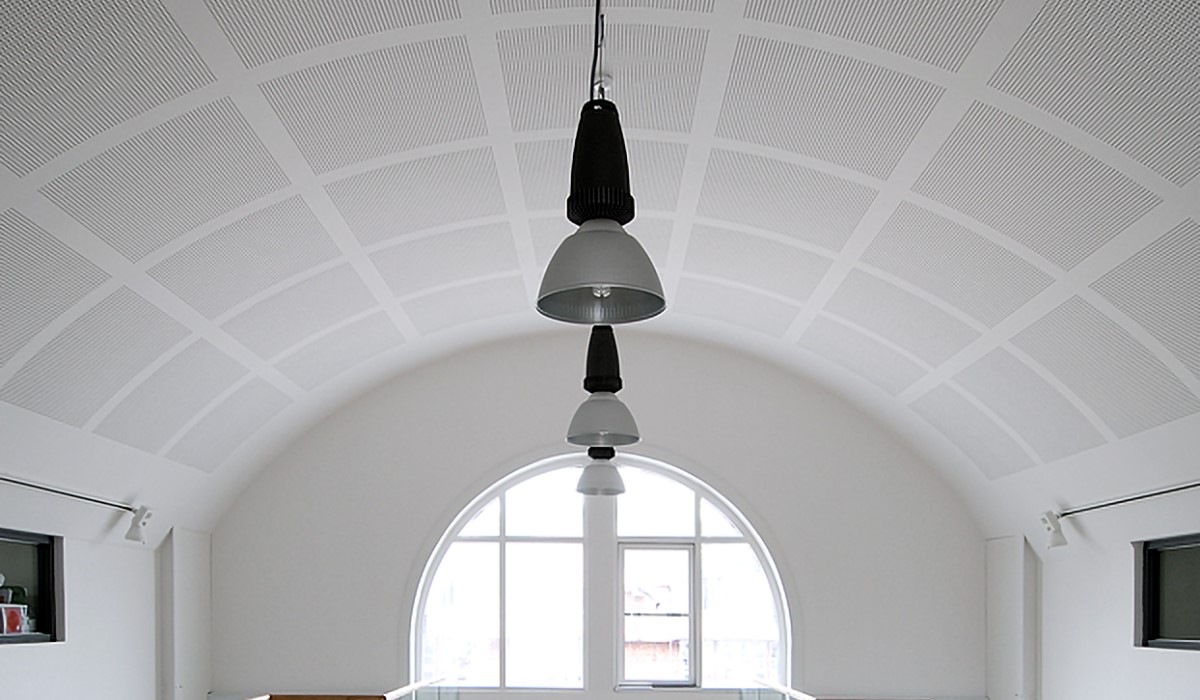

Gypsum is a pliable material which makes curving on site easy.

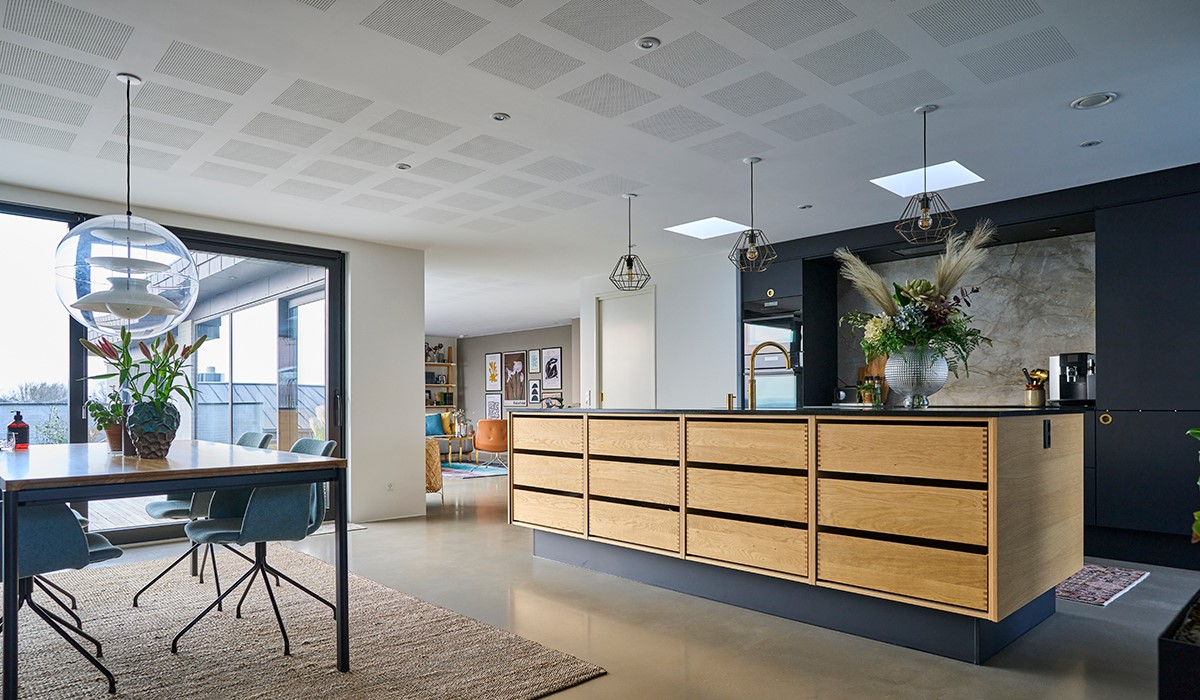

Designpanel in private home in Northern Denmark. Be inspired here.
Designpanel is easily integrated with regular gypsum boards.

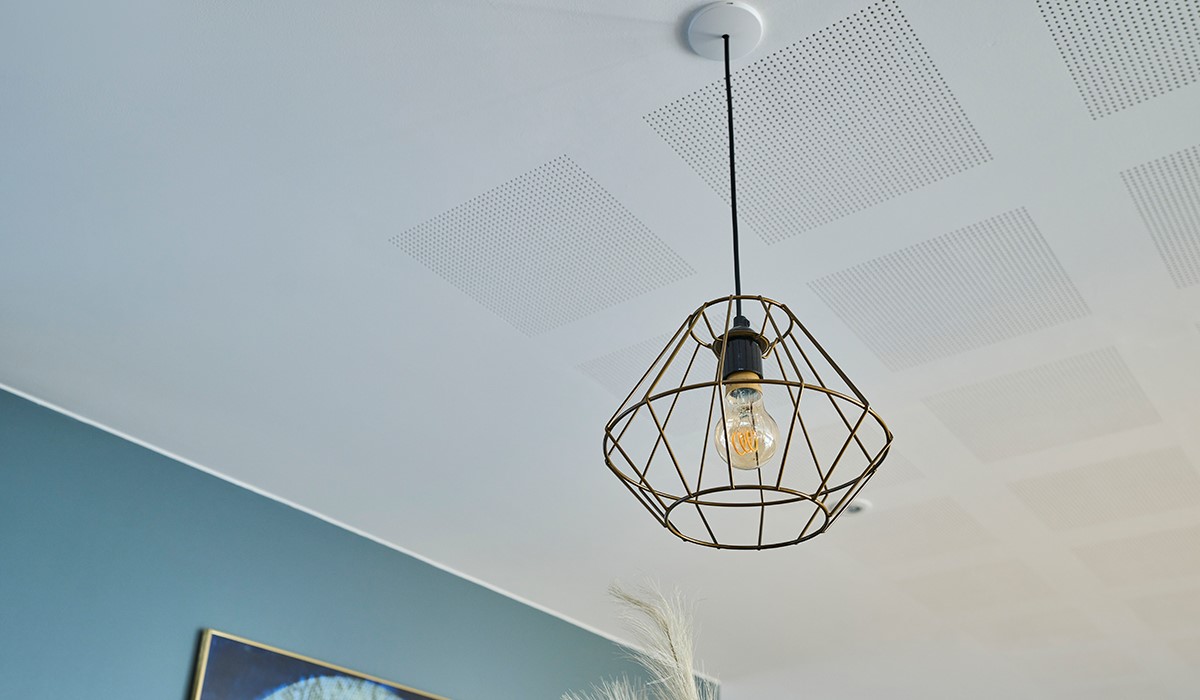

Designpanel acoustic ceiling panels in private home in Denmark. See more here

Coherence between ceiling and walls

As a perforated gypsum board, Designpanel can be fully integrated with regular gypsum boards. Thus, you can achieve a complete coherence between acoustical ceiling and other drywall surfaces in the room.

Indoor comfort and recyclability

Designpanel - like the rest of our products - is designed to last. The acoustical panels are made from gypsum - a robust and recyclable material. The panels can be repainted again and again without any impact on the acoustical properties. Each of our Designpanel tiles consist of up to 40% recycled gypsum, and because of gypsum as material, our ceiling and wall tiles have a long service life without discoloration.

Design flexibility

With Designpanel you are free to shape your acoustic constructions as you like. The perforated gypsum panels can be used as ceiling or wall linings. They can be installed on wood or steel furring. Designpanel can also easily be curved, mitred and painted on site to suit your requirements.

Product performance

Recyclability

Made of gypsum, a recycleable material

Excellent light reflectance
Acoustics

Up to 0.75 NRC

Up to 0.70 alpha value

Value depending on design and construction

Repaintable without loss of acoustics
Air quality

Certified according to
Danish Indoor Climate labelling

Air purification with
Cleaneo Technology

Verified Environmental
Product Declaration (EPD)

Listed to be used in
Nordic Swan Ecolabelled buildings
Robust and stable material

Crack resistance

Higher stability with screw-fixed installation

Form stable
