Tectopanel Wall

Product Details

Perforation

Tangent (T)

Micro (M)

Quadril (Q)

Globe (G)

Also available non-perforated
Other perforation patterns are manufactured to order.
625x1250, 600x1200 and 600x2400 are not available with Micro M1.

Edge

Tectopanel

Tectopanel Wall edge

Edge B
Visible joint

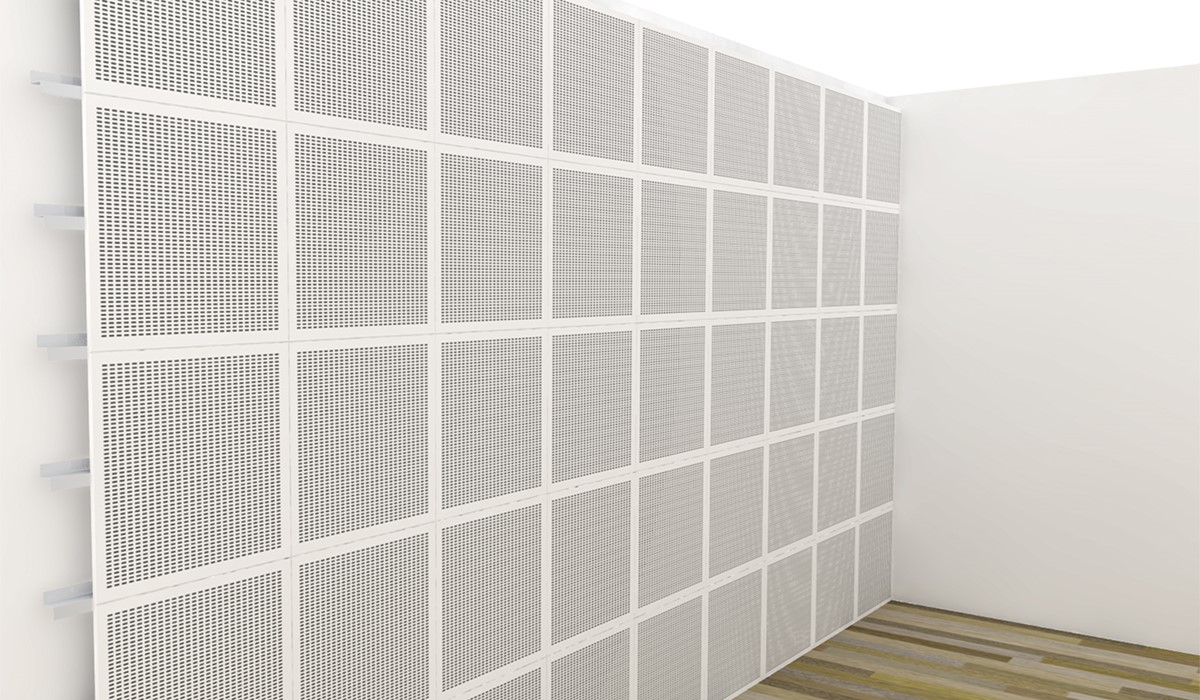

Flexible acoustic wall lining with a distinct unified look

Blank canvas offering numerous opportunities for creative design onsite.
Available in a large number of sizes.
Suitable for curving on site or from factory.

Acoustics

See more absorption coefficients under Absorptiondata

SIZE (MODULE)

400 x 600 x 9.5 mm

625 x 625 x 12.5mm

300 x 1200 x 12.5 mm

400 x 600 x 12.5 mm

400 x 1200 x 12.5 mm

600 x 600 x 12.5 mm

600 x 1200 x 12.5 mm

600 x 2400 x 12.5 mm

625 x 1250 x 12.5 mm

400 x 600 x 9.5 mm - Only available as non-perforated Regula
400 x 600 x 12.5 mm - Only available as non-perforated Regula and Globe G1
400 x 1200 x 12.5 mm - Only available as Tangent T1


Surface

Untreated surface.


WEIGHT KG/M²

Indicative tile weight:  7.70 – 9.90.
All according to type of perforation and thickness.

Technical Properties

Light Reflection

Depends on the paint used on site



Read more about light reflection

Air purification & Air quality

Active reduction of air polluants thanks to

Cleneo_logo_262px

Cleaneo Technology effectively reduces concentrations of VOC’s like alcohol, aldehydes, ketons and esters as well as unpleasant odours from e.g. food or cigarette smoke



Air purification properties tested according to CEN standards and VDI guidelines by Fraunhof Insistute

for Building Physics





Indoor value: 10 days
Particle emission: low – less than 0.75 mg



Read more about air quality

Robustness

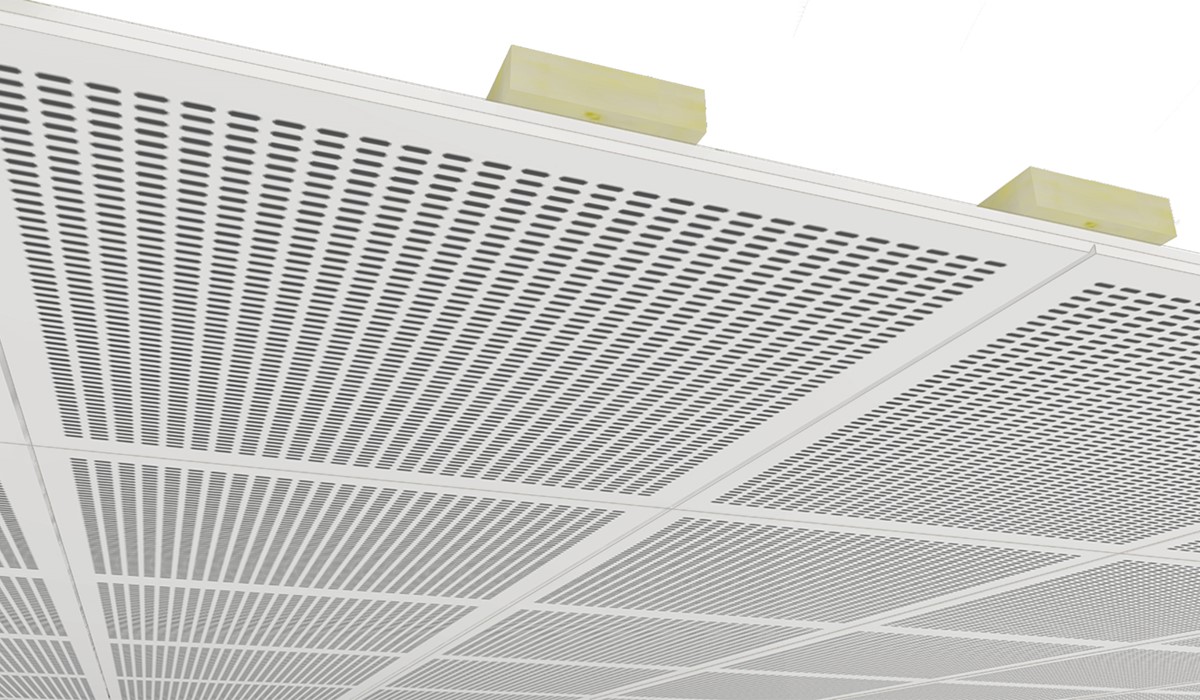

Made of robust, glass fibre reinforced material with excellent pressure resistance and can therefore be used on walls as well as ceilings.
Under normal conditions of use, the product properties are preserved and there is no decomposition of material over time.



Read more about the hardness of the gypsum core

Moisture Resistance

Tested at 90% RH and 30°C
The product can withstand temperature conditions of up to 50°C.



Read more about moisture resistance

Hygiene

Dust removal by dry duster or vacuum cleaner.
Removal of marks with a damp cloth.
Normal cleaning practice and neutral cleaning solutions.

See more in the maintenance guide



Read more about hygienic surfaces

Installation

Download: Installation guide (PDF)

Related references

Reference_thumb_Slattang_SE

Education

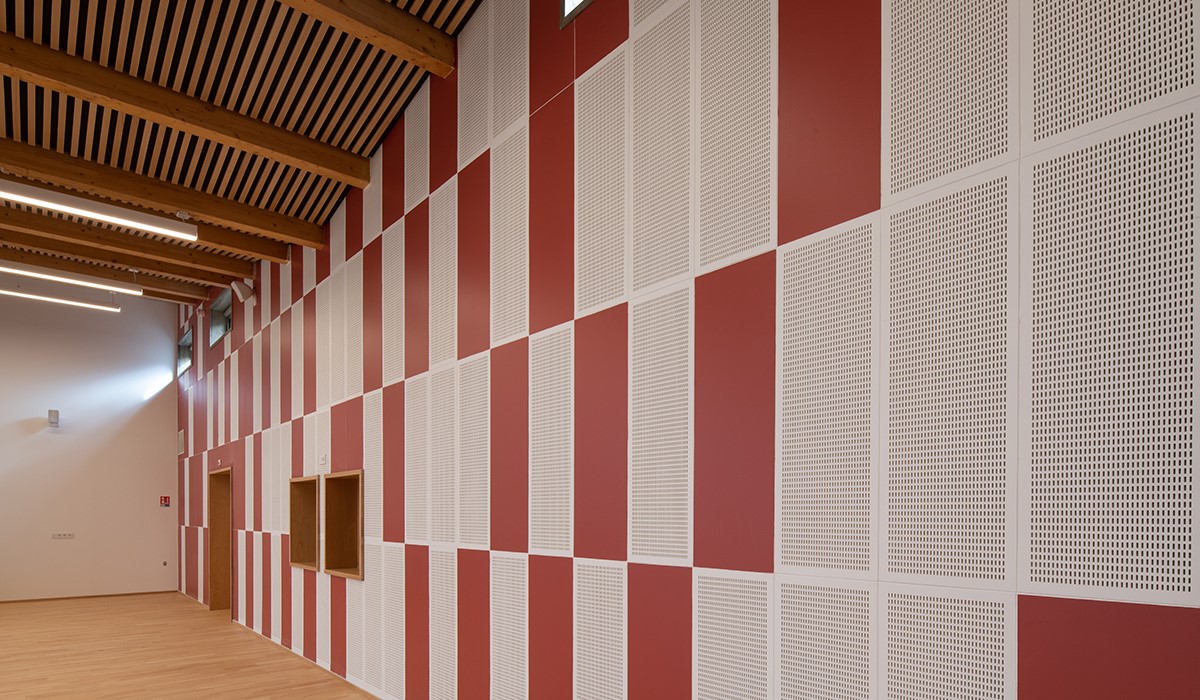

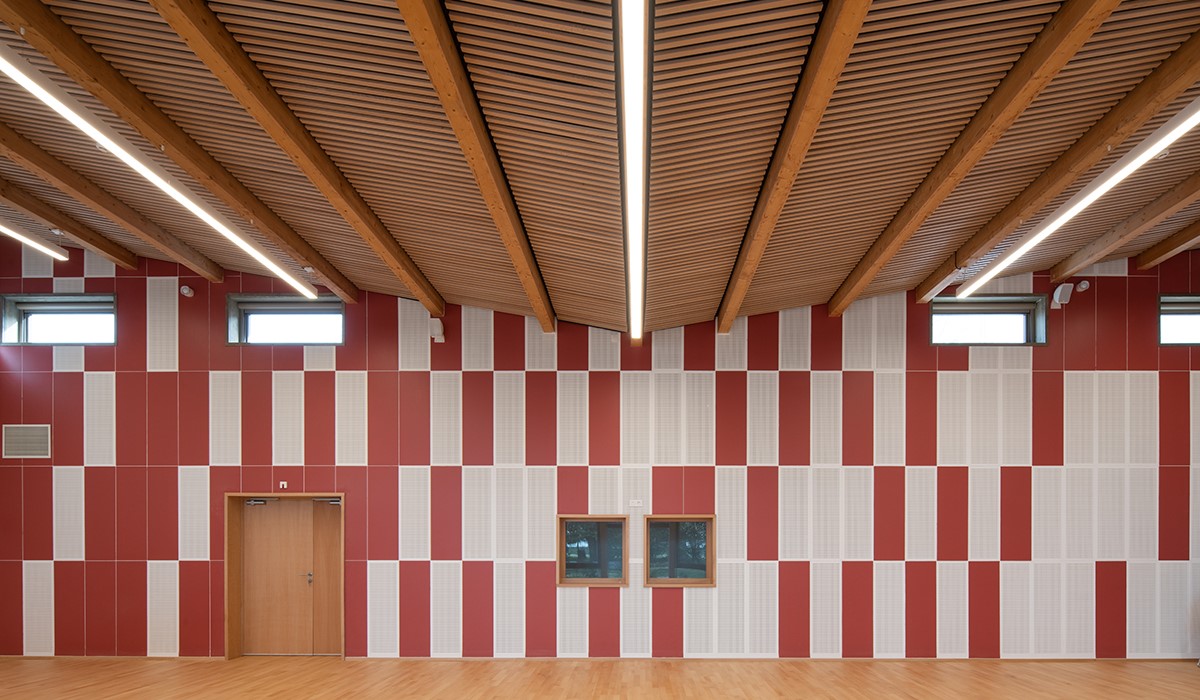

Slättängs School
