Plaza

Product Details

Perforation

Unity 3

Unity 4

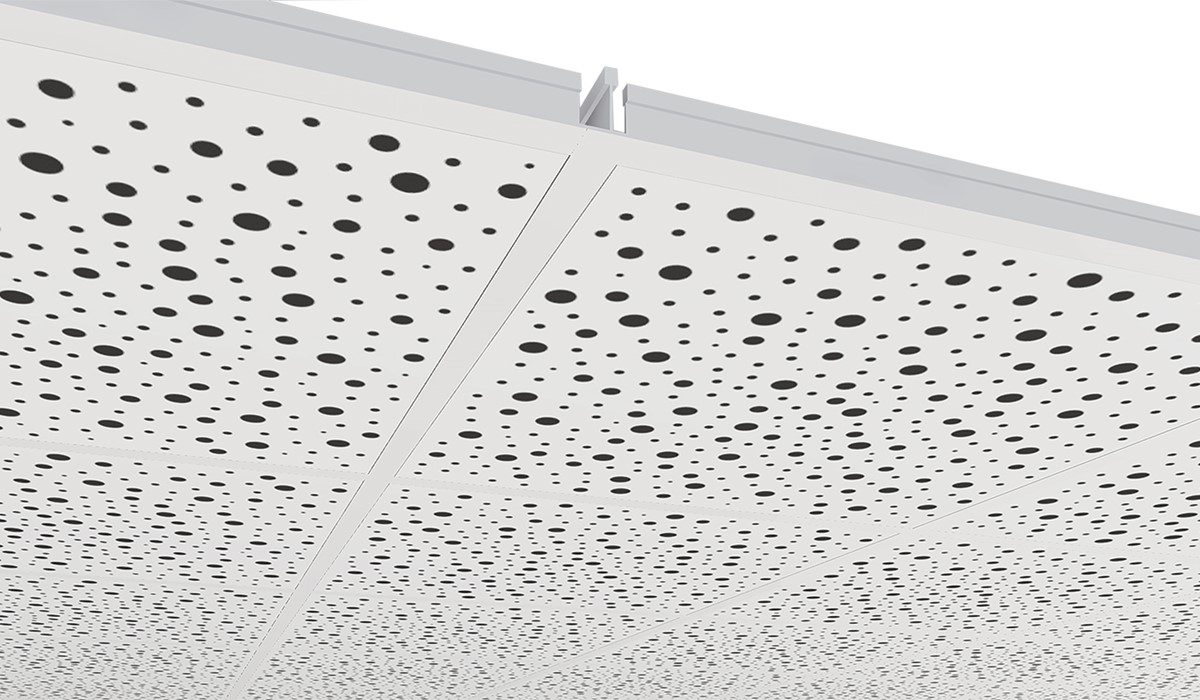

Unity 8|15|20

Tangent (T)

Micro (M)

Quadril (Q)

Globe (G)

Also available non-perforated.
Other perforation patterns are manufactured to order.

Edge

Edge A+

Edge A

Edge A/A+
Visible grid

Outlined look offering play of contrasts

Functional design with a clear-cut look.
Straight-forward acoustic ceiling with visible T-grid.
Robust ceiling, easy to mount.

Acoustics

See more absorption coefficients under Absorptiondata

SIZE (MODULE)

625 x 625 x 12.5mm

600 x 600 x 9.5 mm

600 x 1200 x 9.5 mm

600 x 600 x 12.5 mm

600 x 1200 x 12.5 mm

625 x 1250 x 12.5 mm

600 x 600 x 9.5 / 600 x 1200 x 12.5 / 625 x 1250 x 12.5 - Not available with Tangent perforation
600 x 1200 x 9.5 / 600 x 1200 x 12.5 / 625 x 625 x 12.5 - In Micro perforation only available as M1F


Surface

Standard white painted surface NCS 0701 Y24R (RAL 9003).

Gloss 5.

Other colours available on request.


WEIGHT KG/M²

Indicative tile weight:  7.80 – 8.70 (9.5 mm) / 9.00 – 9.90 (12.5 mm).
All according to type of perforation and thickness.

Technical Properties

Fire Rating

A2-s1,d0



Read more about gypsum’s reaction to fire



Light Reflection

Globe: 72.8%
Quadril: 75.1%
Micro: 72.1%
Tangent: 70.9%
Regula: 82,6%
Unity 3: 69.2%
Unity 4: 72.5%
Unity 8|15|20: 72.2%



Read more about light reflection

Air purification & Air quality

Active reduction of air polluants thanks to

Cleneo_logo_262px

Cleaneo Technology effectively reduces concentrations of VOC’s like alcohol, aldehydes, ketons and esters as well as unpleasant odours from e.g. food or cigarette smoke



Air purification properties tested according to CEN standards and VDI guidelines by Fraunhof Insistute

for Building Physics





Indoor value: 10 days
Particle emission: low – less than 0.75 mg



Read more about air quality

Load Bearing Capacity

600 & 625 (G, Q, M, R): 1 / A / No load
600 & 625 (G, Q, M, R): 2 / A / 30 N
600 & 625 (T): 1 / A / No load
1200 (G1F, Q1F, M1F, R): 2 / A / No load
1250 (G1F, Q1F, M1F, R): 2 / A / No load
600 & 625 (G, Q, M, R): 2 / B / No load



Read more about load-bearing

Robustness

Made of robust, glass fibre reinforced material with excellent pressure resistance.
Under normal conditions of use, the product properties are preserved and there is no decomposition of material over time.



Read more about the hardness of the gypsum core

Moisture Resistance

Tested at 90% RH and 30°C.
The product can withstand temperature conditions of up to 50°C.



Read more about moisture resistance

Hygiene

Dust removal by dry duster or vacuum cleaner.
Removal of marks with a damp cloth.
Normal cleaning practice and neutral cleaning solutions.

See more in the maintenance guide



Read more about hygienic surfaces

Installation

Download: Installation guide (PDF)
