Contrapanel Wall

Product Details

Perforation

Globe (G)

Also available non-perforated

Edge

Contrapanel

Contrapanel Wall edge

Edge B
Visible joint

Acoustics and impact resistance in one solution

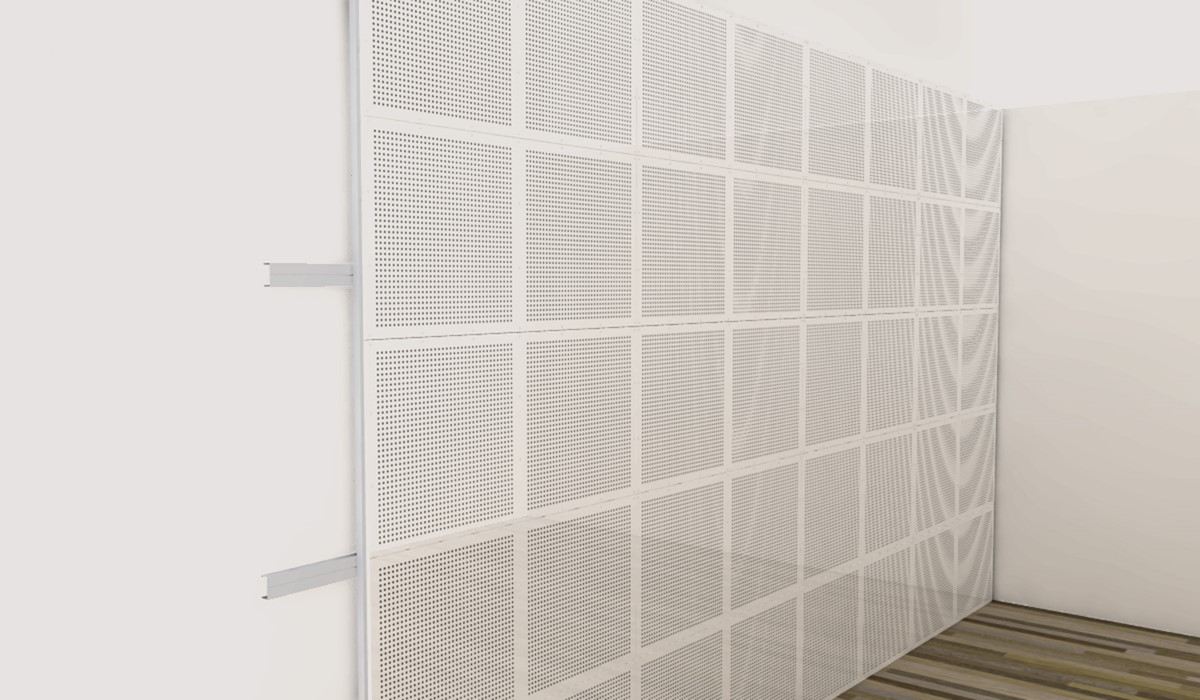

Acoustic wall lining with a distinct unified look.
Foil-covered surface – easy to clean.

Acoustics

See more absorption coefficients under Absorptiondata

SIZE (MODULE)

600 x 1200 x 12.5 mm

600 x 1800 x 12.5 mm

600 x 2400 x 12.5 mm


Surface

Foil-covered surface with pre-impregnated white paper NCS S0300-N (RAL 9016).

Gloss 10.

Tested for chemical resistance in accordance with DIN 68 861, FIRA BS 3962 and NEMA LD-3-1991.


WEIGHT KG/M²

Indicative tile weight:  8.50 – 9.40.
All according to type of perforation.

Technical Properties

Light Reflection

Globe: 74.1%
Regula: 86.3%



Read more about light reflection

Air purification & Air quality

Active reduction of air polluants thanks to

Cleneo_logo_262px

Cleaneo Technology effectively reduces concentrations of VOC’s like alcohol, aldehydes, ketons and esters as well as unpleasant odours from e.g. food or cigarette smoke



Air purification properties tested according to CEN standards and VDI guidelines by Fraunhof Insistute

for Building Physics





Indoor value: 10 days
Particle emission: low – less than 0.75 mg



Read more about air quality

Robustness

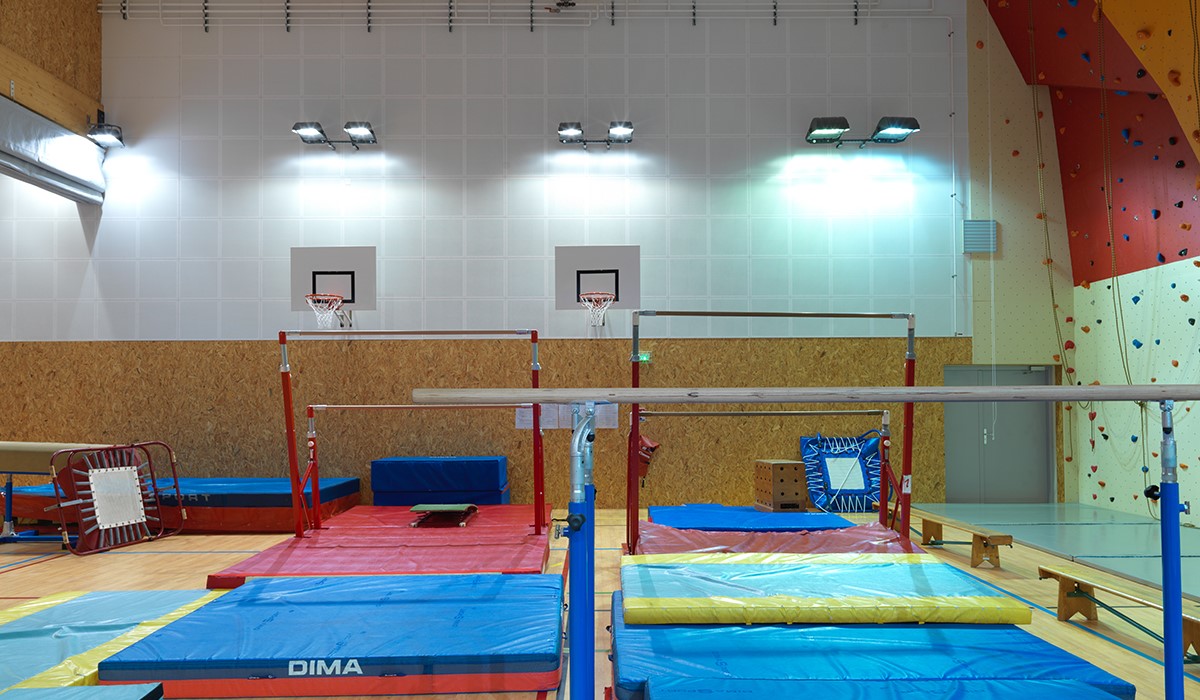

Especially designed to meet the tough requirements for wall and ceiling linings in intensively used facilities such are sport halls and gymnasiums.
No visible deformation after the tests in accordance with EN 13964.
Meets the toughest class 1 requirements in accordance with EN 13964 for impact resistant ceiling linings making the product suitable for handball or hockey courts.



Read more about the hardness of the gypsum core

Moisture Resistance

Tested at 90% RH and 30°C
The product can withstand temperature conditions of up to 50°C.



Read more about moisture resistance

Hygiene

Dust removal by dry duster or vacuum cleaner.
Removal of marks with a damp cloth.
Normal cleaning practice and neutral cleaning solutions.

See more in the maintenance guide



Read more about hygienic surfaces

Installation

Download: Installation guide (PDF)
